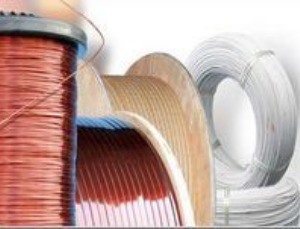

Chopra Wires & Cables, a company established in year 2009 started dealing in Copper Wires and Cables. With its supply to all motor & pump industries. Our founder Mr. Virendra Chopra has been in Wire & Cable business from 1987. Supplying to all pump & motor industries in & around Coimbatore.
Our associated with Ram Ratna (RR) Group in the year 2008, a new phase began. And the company established itself as the leading supplier to Pump & Motor Industries in Submersible Wires and Cables for Tamil Nadu region. This close partnership had led the company to next level of business to reach an overall sales turnover of close to Rs.100 Cr. in year 2020. We are still working hard together to achieve our milestone of 300 Cr. to 500 Cr. business in the coming years.
Infomedia Services is the leading Publisher of Yellowpages and a trusted print directory service provider, that has been in the directional media communications for years.

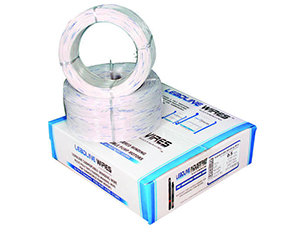

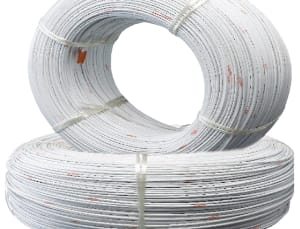

Poly wrapped winding wire commonly known as “Submersible Copper Winding Wire”. The copper conductor is wrapped with thin polyester film and Biaxial oriented poly propylene (BOPP) films. These are are used in submersible pumps motors of all sizes for domestic and industrial application.

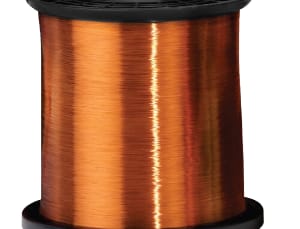

Corona Resistant Winding Wires are used in Inverter drives & Stator Windings. In inverter driven motors, excessive surges and voltage peaks during speed variation, creates corona discharge in the stator windings, which induce extra thermal stress on the insulation, causing excessive thermal ageing there by weakening and even decomposing of the insulation.

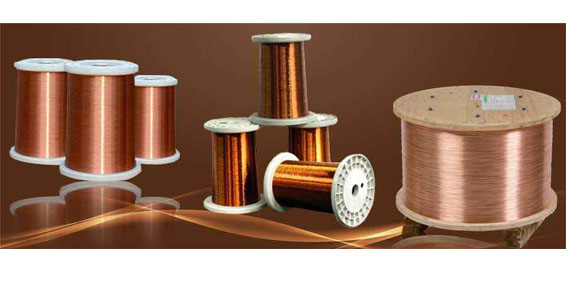

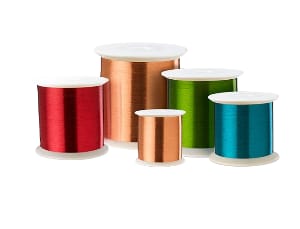

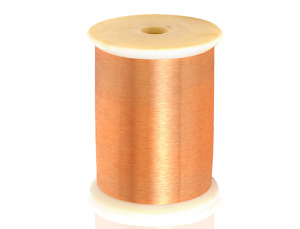

Fine and Ultrafine Enamelled Copper Wires are mainly used in Small Transformers, Relays, Ignition Coils, Transformers & Small Motors. The enamelled wire properties governing proper selection not only require consideration of the end use conditions but system compatibility and ease of use in production.

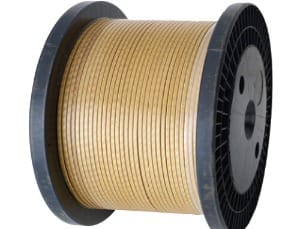

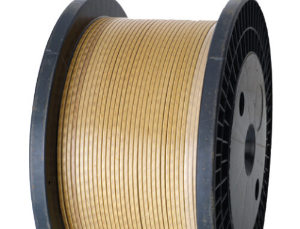

Glass fibre-lapped conductors (bare or enamelled) are very suitable for windings of electric motor stators, generators, special transformers and high voltage motors, heavy magnet coils etc. The glass in glass fibre conductor may be applied in woven tape form or as a continuous fibre.

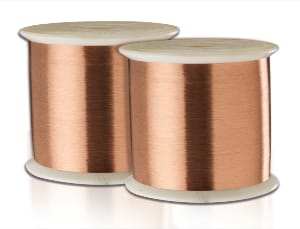

Nylon top coat wires can be used in high speed windings for armature coils of home appliances, power tools, auto coiling machines for switch gears miniature coils in electronics etc. Nylon top coat exhibits a smooth and tough, slippery surface of top layer of insulation, thus, reducing chances of insulation damage and failures related to mechanical abuse of the thin insulation layer.

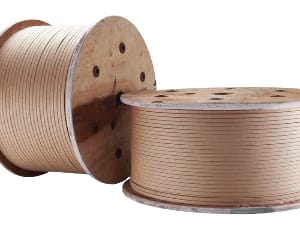

Crepe Kraft Paper Insulated Copper Cables are mainly used as an insulation in oil cooled transformers, current transformers of type IMB, CT, CVT as leads and shields. The plain kraft papers are wrapped in a number of layers around conductors, to acquire the needed insulation strength.

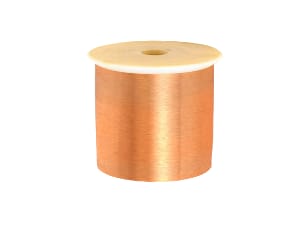

Self Bonding enamelled wires have an outer layer of bondable material which is usually thermoplastic and bonds the wires surfaces with each other once heated to the bonding temperature of the outer layer. Bondable wires can be used in power tools armature coils, electronics, miniature coils, TV yoke coils, continuous-transposed conductors etc.

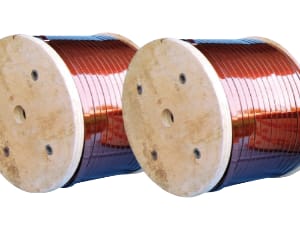

Enamel film insulated rectangular copper conductors are known as enamelled copper strips. Super Enameled Copper Strips are used in various types of transformers.
Enamelled winding wire is a film insulated copper (or aluminium) electrical conductor used in form of coil windings in motors, transformers, generators and other electromagnetic equipments.

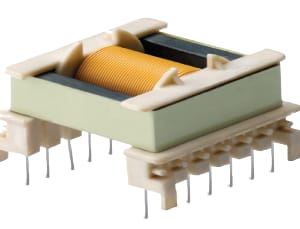

A unique product for small transformers with three layer extruded coatings of high performance polymer resins that gives excellent dielectric properties to this type of winding wires

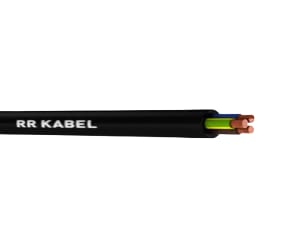

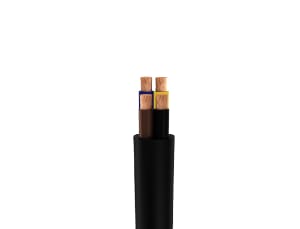

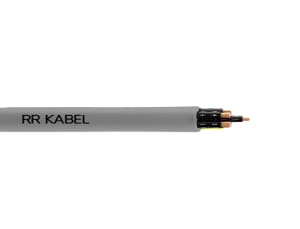

Application :These cables are designed for residential and commercial infrastructure. They serve as the connecting medium in power and control panels, cabinets & switchgears. They can also used for the purposes such as stationary and static appliances, motors and for other single phase connections.
Technical Data:
Approvals : IS 694 marked, FIA/TAC Conductor : Electrolytic grade annealed copper Class-5 as per IS 8130, having uniform resistance
properties :
Core Colours:All black colour cores with continuous white numbering, gn-yl core on outer most layer for earth if applicable
Standard Cable Colour :Black (RAL 9005) & Grey (RAL 7001)
Voltage : Up to and including 1100V
Packing : Standard packing of 100 mtr. in coils. Longer length available on requests.

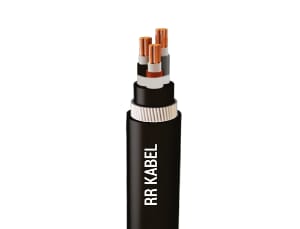

These cables offer the advantages of an armoured 600/1000V rated, low smoke zero halogen (LSZH) cable with circuit integrity. They are intended for use in installations where vital circuits are required to continue operation in the event of the outbreak of fire.
These cables are designed for installations in trunking and conduits where a fire situation may pose a major hazard. Circuit integrity is maintained and to achieve optimum performance such cables should be installed in metal conduits.

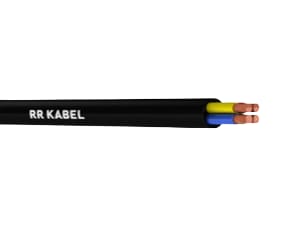

Application

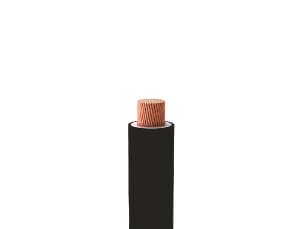

For use in connections of household appliances, plant and machinery, wiring purposes and for manufacturing cords.
Standard
BS EN 50525-2-11, DIN EN 50525-2-11; VDE 0285-525-2-11, EN 50525-2-11.
Technical Data
Nominal Voltage : 300/500V (H05VV-F & H05VVH2-F); 300/300V (H03VV-F & H03VVH2-F)
Insulation Resistance : Min. 20 GΩ x cm
Temperature Range : Flexing -5°C to +70°C. Fixed Installation : -30°C to +70°C
Minimum Bending Radius: Flexing 7.5 x cable ø; Fixed installation 4 x cable ø
Test Voltage : 4000V
Breakdown Voltage : Min. 8000V
Cable Construction
Bare copper, fine wire conductors, as per EN 60228 Cl.5. PVC core insulation TI2, to EN 50363-3.
Harmonised core colour to HD 308 (Refer Appendix Table No. 1-1). Cores stranded in layers with optimal lay-length.
PVC outer sheath TM2, to EN 50363-4.1.
H05VV-F is also available in oil resistant variant as H05VV5-F.
The outer sheath provided here is of special PVC, TM5 to BS EN 50363-4.1.
Properties
PVC self-extinguishing and flame retardant according to EN 60332-1-2.
Please complete the part numbers for these cables by adding the suffix (in place of “z”) for the sheath colour required:
1 – black (RAL 9005), 3 – grey (RAL 7001), 5 – white (RAL 9010). For Oil Resistant sheath kindly add “OR” after the part nos.
For flexible use with medium and free movement without tensile stress or forced movements in dry, moist and wet rooms as well as outside (fixed installation). These cables are used for manufacturing machines, machine tools. Also used in conveyor belts and product lines.

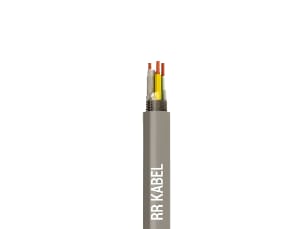

These data cables with twisted pairs are used for interference-free transmission of data and signals over longer distances. This cable forms an integral part of supervisory control and data acquisition (SCADA) systems.

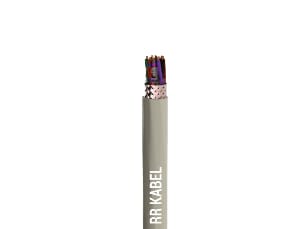

These cables are used for data and signal transmission application in the electronics of computer systems, electronic control equipment and measuring devices in the tool making and machine industries.

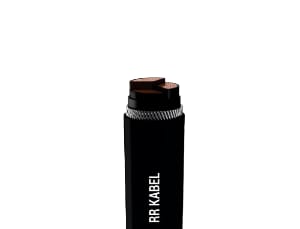

Industrial wiring and mains distribution. Can be laid direct in the ground, or in ducts, clipped to surface, on trays or in free air. May also be embedded in concrete.
These cables are designed for residential and commercial infrastructure. They serve as the connecting medium in power and control panels, cabinets & switch gears. They can also used for the purposes such as stationary and static appliances, motors and for other single phase connections.
Technical Data
Approvals : IS 694 marked, FIA/TAC
Conductor : Electrolytic grade annealed copper Class 5 as per IS 8130
Standard Cable Colour : Black, grey & white
Voltage Rating : Up to and including 1100V
Packing : Standard packing of 100 mtr. in coil. Longer length available on request

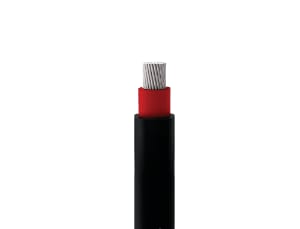

Solar cables are intended for use in photovoltaic power supply systems and similar applications as free hanging, movable, fixed installation and buried in ground in constructional covered systems.

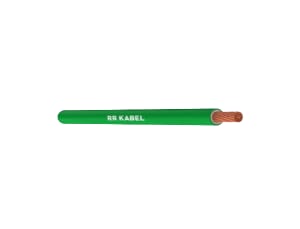

India’s 1st Heat Resistant and Flame Retardant REACH and RoHS Compliant Cable with Unilay Conductor. Suitable for use in conduit and for fixed, protected installation, ideal for high density wiring.

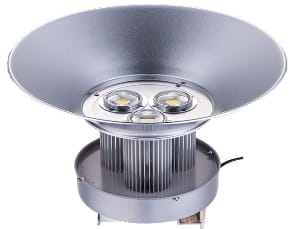

SMD LED High Bay lights offer great savings for commercial premises that are looking to switch from traditional forms of commercial lighting such as halogen bulbs, to energy saving commercial LED lighting . Commonly used for ceiling lights include in warehouses, manufacturing workshops, large supermarkets and other retail environments

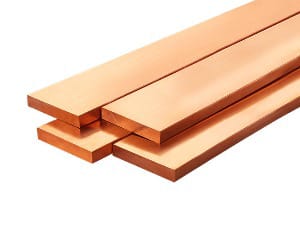

RR Busbars & Tapes are made from registered cathodes of Grade “A” type LME having copper purity of 99.99%. This high purity input give RR products high electrical conductivity of 100% IACS (International Annealed Copper Standard). This level of high conductivity is desirable for accurately designing electrical instruments.

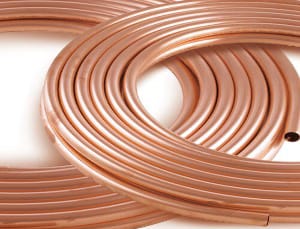

Pan cake coil in which the turns are wound into layers parallel to the axis of the coil such that successive turns in a given layer are next to one another: Also called Helical Coils – Coils upto 100 ft.

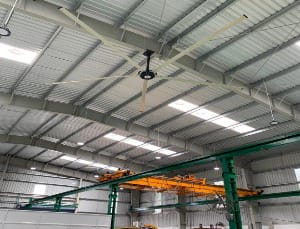

RR Fan’s High-Volume Low Speed (HVLS) fan is an Air Circulating device which has a Large Diameter in comparison to a conventional Ceiling fan. It is available in varied sizes ranging from 8 to 24 feet. These fans are generally ceiling mounted although some are Pole mounted too. The key highlight of these fans is that they move slowly by distributing large amounts of air at low rotational speed, hence they are known as High Volume Low Speed (HVLS) Fans.

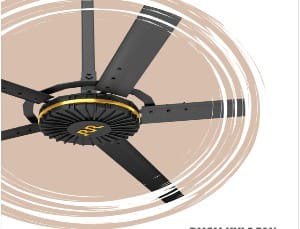

Permanent Magnet Synchronous Motorised HVLS Fan series from RR has been conceptualized and developed at our in-house R&D centre. It has a light and stylish design with the fan blades made from aviation grade aluminum that makes them stronger and more efficient. The winglets help in reducing air resistance and noise, reaching optimal silent performance at low speeds. Our PMSM HVLS Fan is certified with ISO 9001:2015 and made using only world class industrial grade components and spare parts of the highest quality. We ensure the most efficient and reliable fan for you to use.

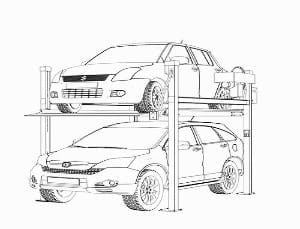

This is a dependent type of parking system and is very basic and easy to operate. Suitable for 2 Tons and 2.5 Tons Lifting capacities

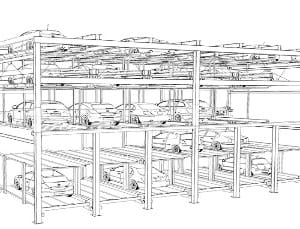

This is an independent and automatic parking system. The system is preferably designed for the Car entry at the TOP i.e the ground floor and parking system BELOW i.e under the ground floor. This system is suitable for a maximum of 40 -44 cars.

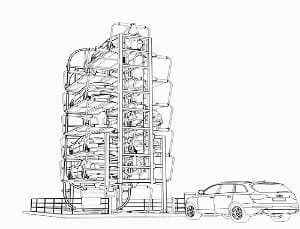

This is an independent and automatic parking system. This system is works on the clockwise / anticlockwise direction with the help of single motor. With this system, 8/10/12/14 cars can be parked in place of 2 cars.
This is an Independent parking system available in two variants – Electro mechanically operated system and Hydraulically Operated Systems. This parking system can be designed for combination of 2 Ton & 2.5 Ton payload capacities.

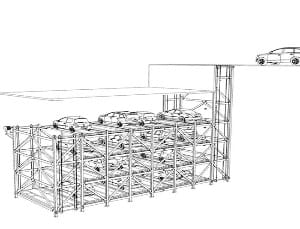

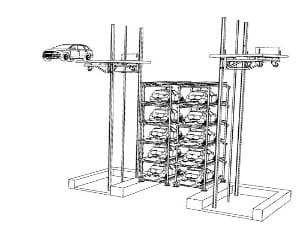

The Shuttle parking system can be provided with 2 type of configuration – Steel Structure Based – Above ground/below ground and RCC floor based – Above ground/below ground. The system can be designed for 2 Ton or 2.5 Ton capacities

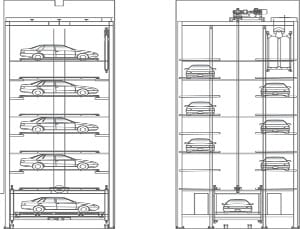

This is one of the most efficient independent parking system. The Tower parking system can be provided with 3 type of configurations – Standalone Steel Structure Tower – OPEN TOWER, Steel Tower within the RCC shaft – CLOSED TOWER and Steel bracket with columns within the RCC shaft – RCC TOWER
