Rumana Global Associates is well located in Coimbatore, Tamil Nadu for manufacturing and supplying Foundry Chaplets, Brass Air Vents, Pressed Sheet Metal Components and many more. Organization has been popular amongst huge number of clients and is doing amazing business since the time of its establishment in 1995 as a sole proprietorship firm. We have been able to maintain a very stable position in market owing to our strict adherence to industrial guidelines.
The products manufactured by us are well known for the great features and amazing quality. Our foundry chaplets are popular for easy melting and many more. The organization has developed a niche in understanding the aspiration of clients and we ensure to move as per their desires. As the products are used in foundry, automobile, textile and motor pump industries. We continue to receive huge demands regularly.
Infomedia Services is the leading Publisher of Yellowpages and a trusted print directory service provider, that has been in the directional media communications for years.

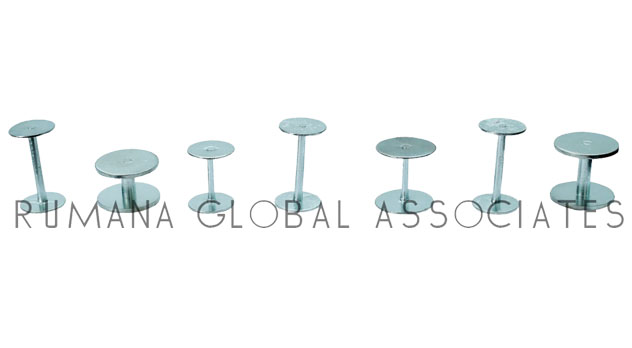

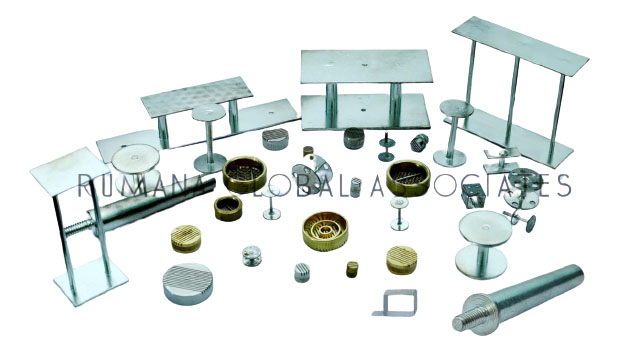

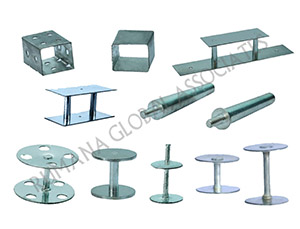

We have put forth for the clients a huge assortment of Foundry Chaplet in various specifications.Chaplets are supporting components used during casting process between mould and core to maintain uniform wall thickness of the casting. These products are made from high quality raw material. Our chaplets are available in single and double columns to meet the specific requirement of our customers.

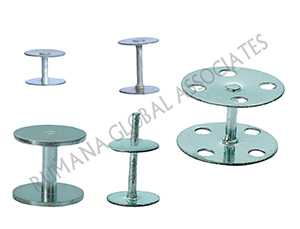

Single stud chaplet or light duty chaplet used in foundry to support the core in machine moulding and light castings. In this type round head cold rolled sheet thickness 0.35 mm and 0.5 mm. Stem diameter is 1.5 mm.

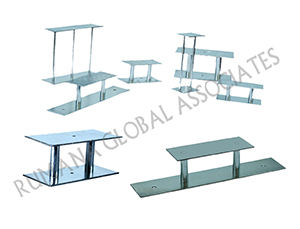

For this type we used high quality sheet and fabricated with turned mild steel pins.

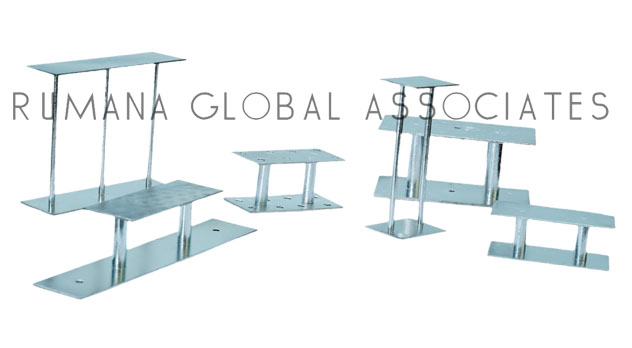

Sheet thickness 1mm, 1.5mm, 2mm. Pin diameter depends upon the customer
requirement like 3mm, 5mm, 6mm, 8mm. It is suitable for heavy casting. We can
also supply triple column and four column chaplets as per your requirement.

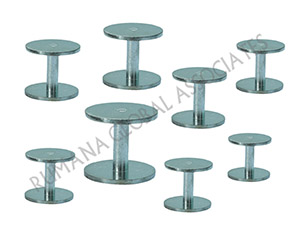

Heavy duty chaplet regularly used to support the core to maintain the required wallthickness top and bottom of mould. This type made with round or square head cold rolled sheet with diameter 20mm and 25mm, sheet thickness1mm or 2mm. Stud diameter 3mm, 5mm, 6mm, 8mm as per customer requirement. Surface finished with Tin coating.

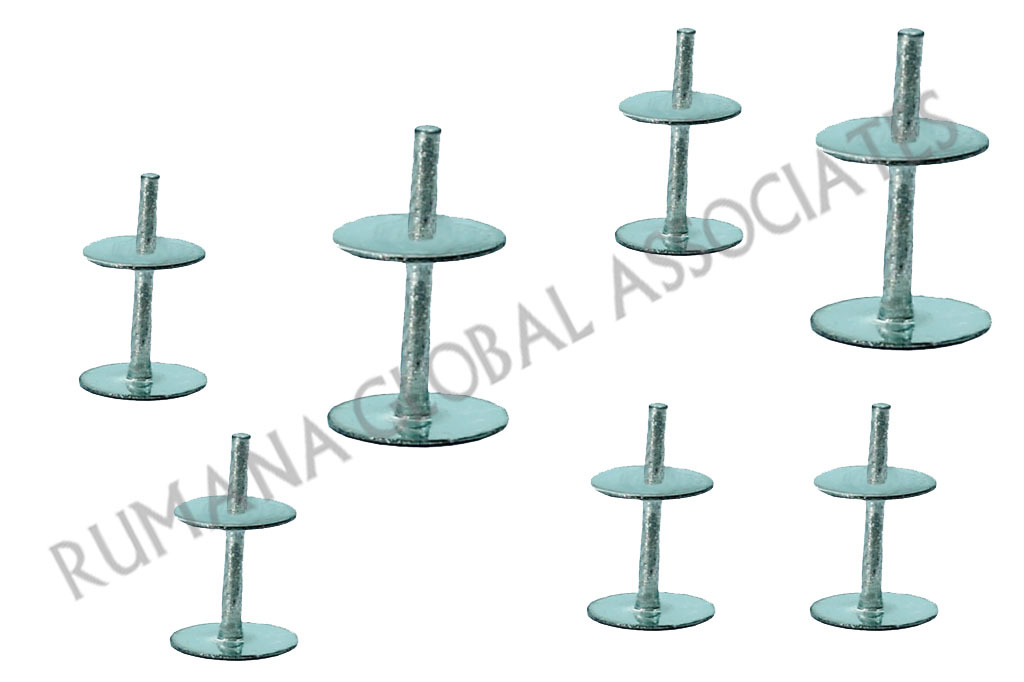

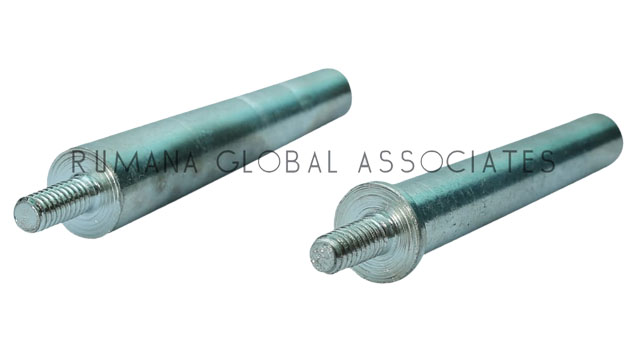

Pin type chaplet just like stud type chaplets with extension of the pin to use support the core from side wise and some critical area. In this type there are plain and Perforated, tin coated available.

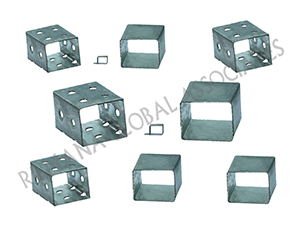

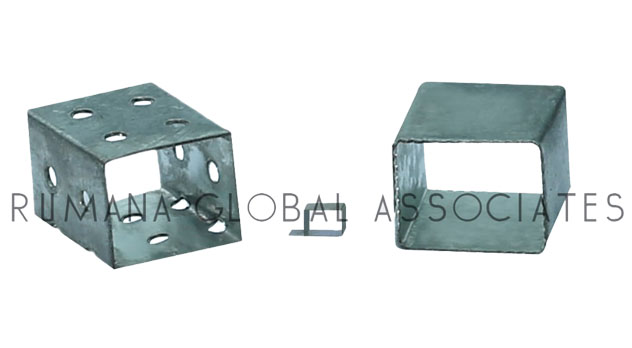

Generally it is used for thin walled castings. Especially it is suitable for pressure tested castings like pump casing, gearbox housing and engine cases blocks etc., We can supply the range from 4mm to 20mm with sheet thickness 0.14 mm, 0.35 mm, 0.50 mm.

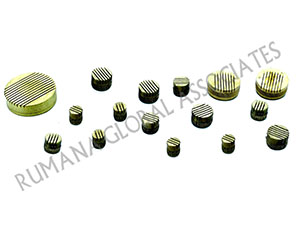

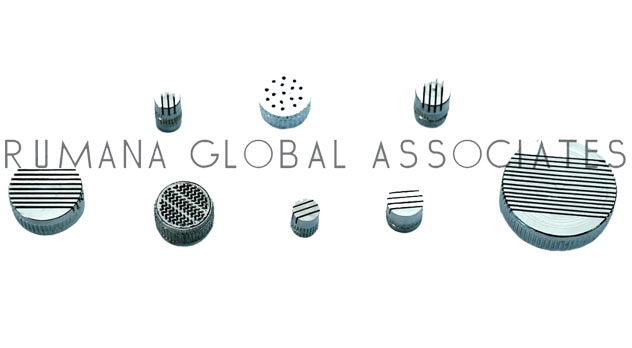

Slotted Brass Vents made from turned Brass round bar slotted with 0.2mm and 0.3mm. Size available standard height 7mm in diameter 4mm to 20mm. We can also supply 10 mm height or as per your requirement.

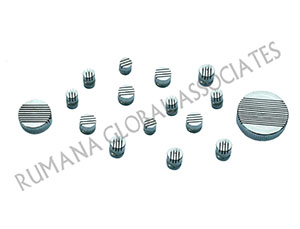

Steel vents are manufacturing from high quality steel for withstanding high temperature, and hesitates from wears.

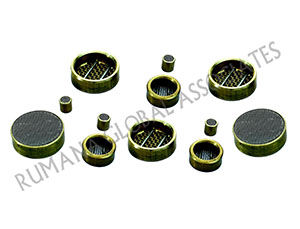

Mesh type vents turned brass body fitted with steel wire mesh. It helps to vent out air, heat & more efficiency during core making process. Size available diameter 6mm to 20mm.

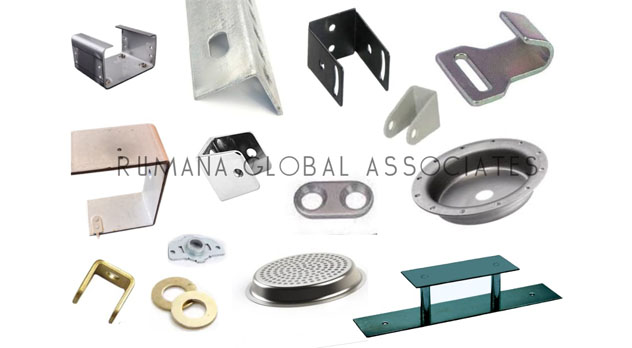

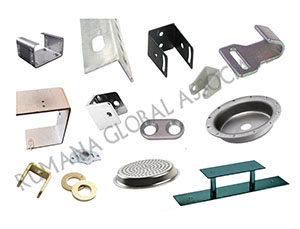

We are Engaged in Processing Precision Sheet Metal Stamping and Turned Components Sub Assembly with best grade raw materials using Latest Technology.
We are successfully involved in offering Steel Plate Fabrication services which are rendered by our experienced professionals.
We fabricate these foundry equipment from superior quality raw material like Mild Steel Material, Stainless Steel, Brass and Gunmetal, which is procured from authorized vendors to deliver zero defect product.
We are also engaged in CNC Turned pars with Materials like Cast Iron,Mild Steel, Stainless Steel, Aluminium,Brass,etc.,.The Quality of the parts turned will be precise with the help of well experienced technical team.
